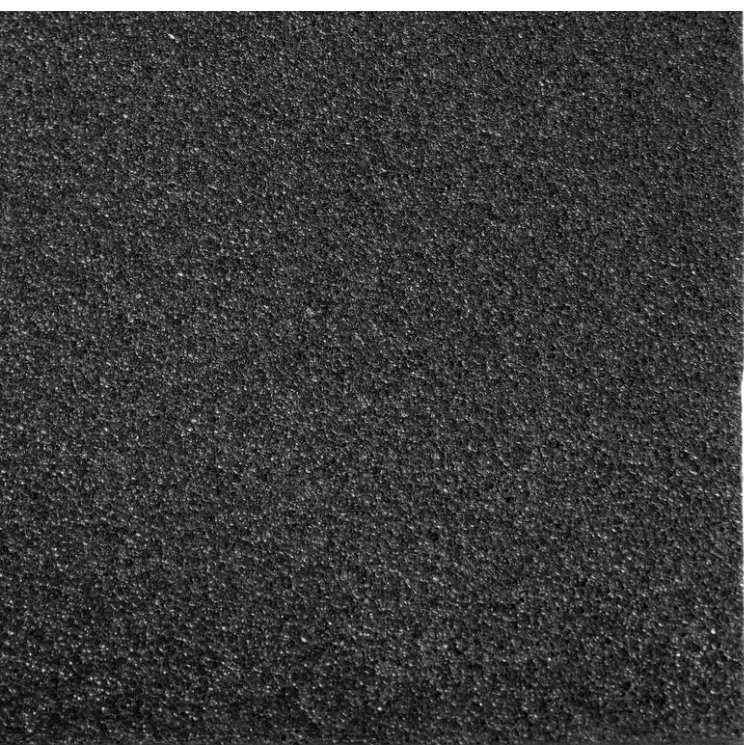

Ensolite Foam

Armacell's Ensolite IV1, IV3, and MLC elastomeric closed cell foams are designed for use in Aerospace, Automotive, and Marine applications. These foams have excellent resistance to oil, fuel, and water, and can be used in both indoor and outdoor applications. This foam is notable for its use as carpet padding, cushioning for seat components, or in headliners and sidewalls. It can also be used for gasketing or sealing applications.

Sold in 25-ft rolls. 1" or .5" thick rolls will have a 2-3 week lead time. Rolls may have a skin layer on one side. ±1/16" tolerance on all thicknesses.

1/2" AND 1" VARIETIES AVAILABLE UPON REQUEST WITH A TWO-WEEK LEAD TIME.

Note: Includes FAA burn certificate for 25.853(a), except for 1/8" IV1 and 1/8" and 1/4" MLC foam. 1/8" IV1 and 1/4" MLC foam do not pass FAR 25.853(a) vertical burn test when tested alone, but do pass when sandwiched between acceptable materials, such as in armrests, carpet padding, wall padding, etc. 1/8" MLC is not expected to pass even when sandwiched between acceptable materials.

Width

Color

Density

Compression Deflection 25%

Compression Deflection 50%

Compression Set

Elongation

Tear Strength

Tensile Strength

Water Absorption

Temperature Range

IVI Specifications

54 inch

Black

3.0 - 5.0 lb/ft3

2.0 - 5.0 psi


6.96 - 14.06 psi

40% max

100% min

9 lb/in min

50 psi min

5% max

-40°F to 200°F (intermittent)

54 inch

Black

PVC/NBR

7.0 - 9.5 lb/ft3

9.0 - 13.0 psi

14.07 - 24.9 psi

35% max

100% min

20 lb/in min

100 psi min

5% max

-40°F to 200°F (intermittent)

IV3 Specifications

Width

Color

Polymer

Density

Compression Deflection 25%

Compression Deflection 50%

Compression Set

Elongation

Tear Strength

Tensile Strength

Water Absorption

Temperature Range

Compatibility

  • This product is acceptable for use in all types aircraft and rotorcraft (at 1/4" and higher only).

  • MLC Foam in 1/4" does not pass 25.853(a) on its own, but does pass when sandwiched between two acceptable materials, such as in armrests, carpet pads, and wall padding.

  • This product is not acceptable for applications requiring the 25.853(c) Oil Burn for Seat Cushion test unless a suitable fire blocking layer is used.

Width

Color

Polymer

Density

Compression Deflection 25%

Compression Deflection 25% (after Heat Aging)

Compression Set

Elongation

Tear Strength

Tensile Strength

Water Absorption

Temperature Range

MLC Specifications

54 inch

Black

PVC/NBR

3.5 - 5.5 lb/ft3

2.0 - 3.5 psi

+/- 30%40% max


150% min

8 lb/in min

40 psi min

5% max

-40°F to 200°F (intermittent)
